• Interval

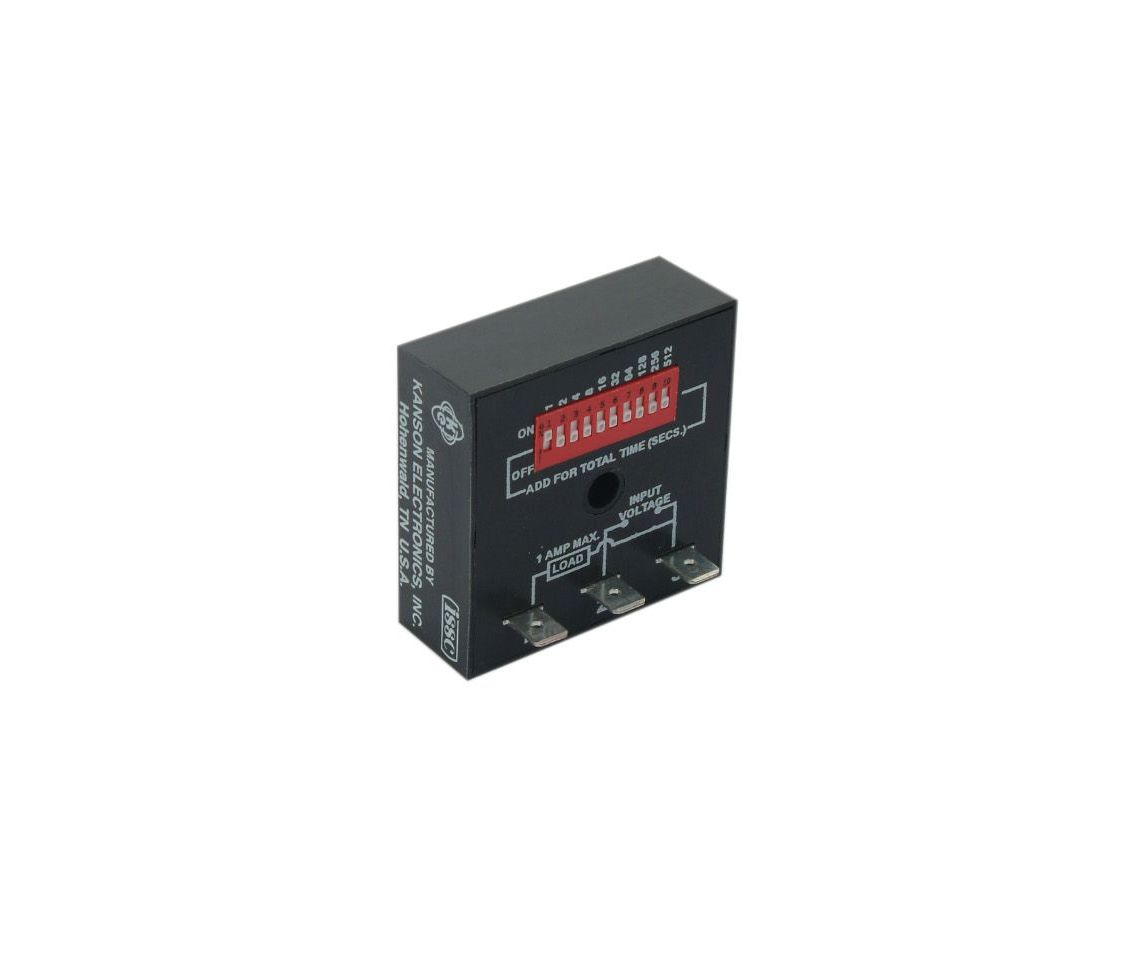

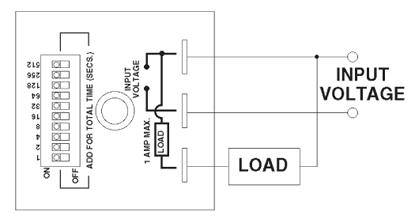

2115 features a simple three-wire installation and programmable switch from 0.1 to 10230 seconds in three-time ranges.

CSA File No. LR92815-3

Input

Voltage: 120VAC or 240 VAC
Frequency: 50/60 Hz
Tolerance (voltage): ± 15% of nominal
Power Consumption: 1 VA Maximum
Transient Protection: Protected

Output

Type: Solid State N.O.
Rating: 1A @ 240AC/DC max (10A 1 cycle surge)

Timing

Timing Function: Interval
Repeat Accuracy: ≤ 0.5%
Reset Time: ≤ 150 msec
Time Range: 0.1 to 10230 seconds in 3 ranges
Range Tolerance: ± 5%
Control: Power applied to input initiates timing cycle

Physical

Operating Temp: -40° to +60° C (-40° to +140° F)
Timing Variation vs. Temp: ± 5% maximum

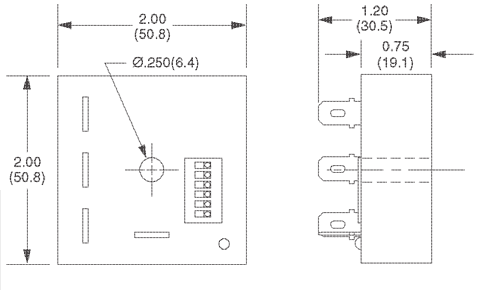

Mounting: Block Mount
Termination: 0.250 inch male quick connect terminals
Housing: Plastic
