The LLD-100 is a resistance detector optimized to detect any conductive fluid. A typical application is to signal a high water level and activate a pump to lower the water to a safe level. Output is “off” with no conducting path from probe to aluminum mounting plate. Output is “on” when resistance between probe and aluminum mounting plate is 1M

Input

Voltage: 105-130 VAC 50/60 Hz
Circuit Type: Normally Open Solid State Output
Probe Input: Open Circuit Voltage 12VDC Peak Current <1mA max.

Output

Max Load Current:: 12 Amps (continuous)
Max Inrush Current:: 50 Amps (one cycle)
Min Load Current:: 100 mA

Physical

Operating Temp: -25° to 70° C (-10° to 155° F)

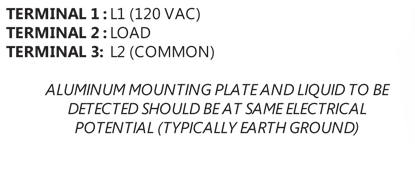

Termination: 3-Pin Terminal strip
