Model 1217P – DC limit style
Model 1217P - DC Limit Style
The 1217P is an inductive proximity sensor that features 10-40VDC voltage, 150 pulses/sec and 100 mA rating.
Specifications
Input
Voltage: 10-40VDC
Frequency: 150 pulses/sec
Output
Rating: 100 mA
Timing
Indication: LED
Physical
Operating Temp: -25° to 50° C (32° to 120° F)
Sensing
Sensing Distance:: 0.5 inch (12.7mm)

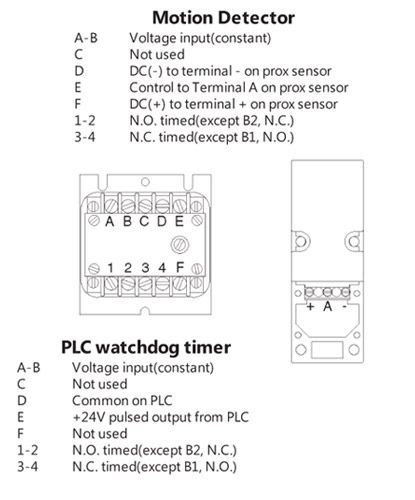

Wiring

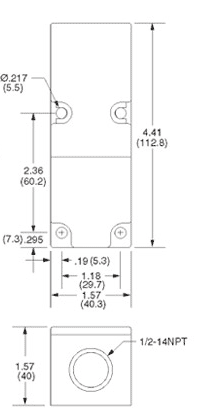

Dimensions
Order Data
